本断路器具有体积小、重量轻、防凝露、免维护等特点，能适应较恶劣的气候条件和污秽环境。

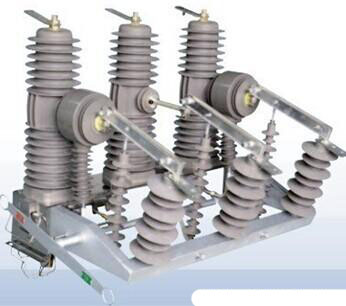

ZW32-24 Type outdoor high voltage vacuum circuit breaker is rated voltage 24kv, three phase AC 50Hz or 60Hz outdoor distribution equipment. Mainly used to breaking closing power system load current, overload current and short-circuit current. Applicable to substations and power distribution in industrial and mining enterprises for protection and control purposes, and frequent operation place for rural power.

The circuit breaker Small size, light weight, anti-condensation, maintenance and so on. Adapt to adverse weather conditions, and to teach filthy environment.

主要技术参数

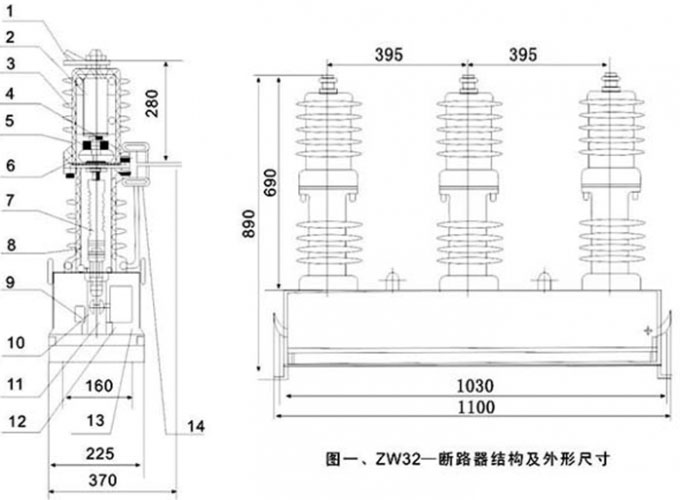

1、up cable output terminal 上出线          2、interrupter 灭弧室

3、insulation cylinder绝缘筒             4、lower cable output terminal下出线端子

5、conducting clamp导电夹                      6、flexible connection软连接

7、insulation pulling lever 绝缘拉杆          8、contact pressure spring触头压力簧

9、opening spring 分闸弹簧                        10、driving plate驱动连扳

11、mechanism output axle机构输出轴     12、operating mechanism操作机构

13、mechanism box 机构箱                       14、current transformer电流互感器

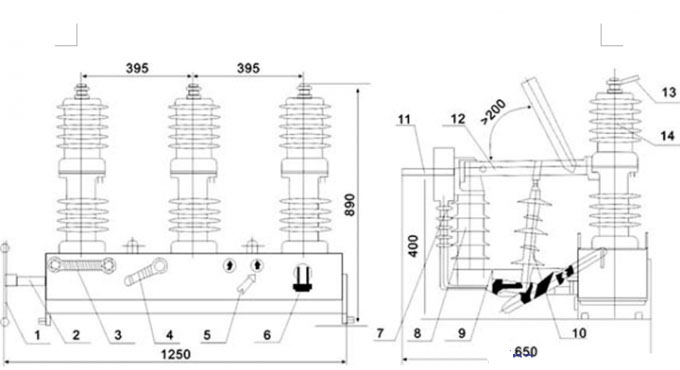

1 operating handle操作手柄

2 isolated spindle隔离主轴

3 circuit breaker manual open-close handle断路器手动分合手柄

4 circuit breaker energy storage handle断路器储能手柄

5 open-close indicator分合指示

6 connection plug接线插头

7 current Transformer电流互感器

8 insulator绝缘子

9 isolating tray隔离架

10 insulation pulling lever绝缘拉杆

11 接线板terminal block（进线端inlet cable terminal）

12 isolated blade隔离刀片

13 terminal block接线板（出线outgoing line）

14 circuit breaker断路器
